YC-KIII-134W
Create
Installation Instructions for CT Bed-Board
Instructions
1. Please ensure the CT machine in the level of state and the arc of the CT is not deformation;
2. Please ensure the CT Bed-Board with complete accessories is free from damage.
Product information

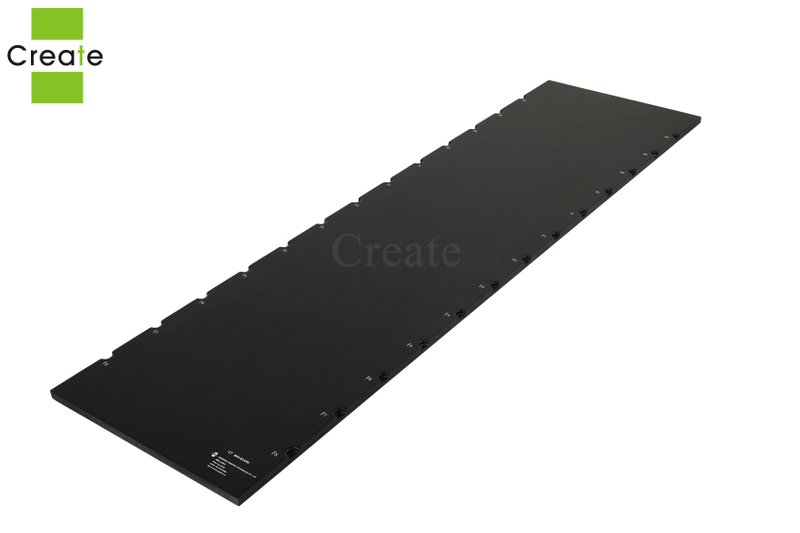

Introducing the CT couch table - the ultimate bed table for CT machines. Designed specifically for patient simulation before treatment by Linac, this product is a must-have for any medical facility.
The CT couch table is compatible with both Varian and Elekta Linac tables, making it incredibly versatile and convenient to use. It boasts a sleek and professional design, perfect for any medical environment.
Crafted with the utmost attention to detail, this product is built to last and withstand the rigors of daily use. Its sturdy construction ensures maximum stability and safety for patients during their CT scans.
Invest in the CT couch table and experience the ultimate in patient comfort and convenience. Order yours today and take the first step towards providing exceptional care for your patients.
Installation Steps
1. Loosen the screw on the back of the CT Bed-Board ( Don't need to twist the screw off);
2. Put the CT Bed-Board on the arc of the CT;
3. Adjust the CT Bed-Board in the center of the position;
4. Push the slider on the back of the CT Bed-Board by hand or other tools, in order to make the slider and the edge of the circular arc can fit together;
5. Use the pen to mark the position of the slider at this time;
6. Remove the CT bed board from the CT machine and adjust the slider to the marked position;
7. Tighten the screws and installation is finished.
About the Installation Steps, see as below:
The width of the arc on both sides of the CT bed was measured with a tape measure
Loosen the slider fixing screw on the back of the CT plate (no need to remove it), adjust the left and right sliders (the middle part with scale) to the measured width of the arc on both sides of the CT bed was measured with a tape measure
The CT plate was placed on the CT arc bed, and the edges on both sides of the slider clamped the two ends of the CT arc.
Note:
If the arc ends of the CT bed are lower than the bed, a thicker slider is required (we have provide the thicker slider in the package).
Compatible the lock-bar with the CT Bed-Board
The CT Bed-Board finished installation on the CT machine;
The lock-bar finished installation on the CT Bed-Board.
